Types

• Reactive: pre-planned conditional actions, responds to env. state, most games are reactive. E.g. Decision Trees
• Deliberative: models env., inferences made to determine the plan to achieve goal
• Reflective: learn from experience

Rule-based systems

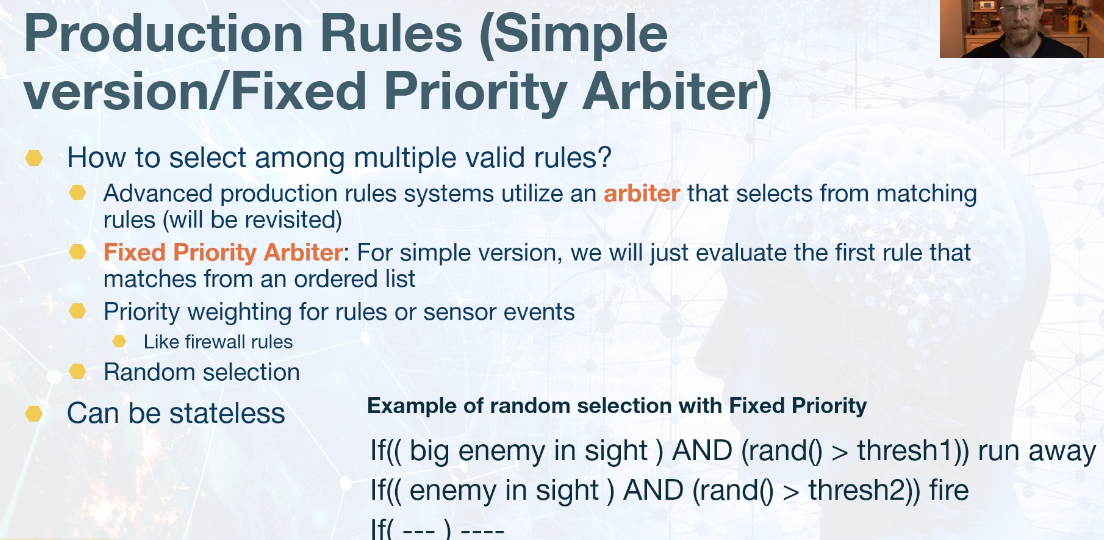

Production Rules

• Define actions to be executed in response to conditions
• Simple architecture but difficult to organize as there is not a straightforward ordering of rules

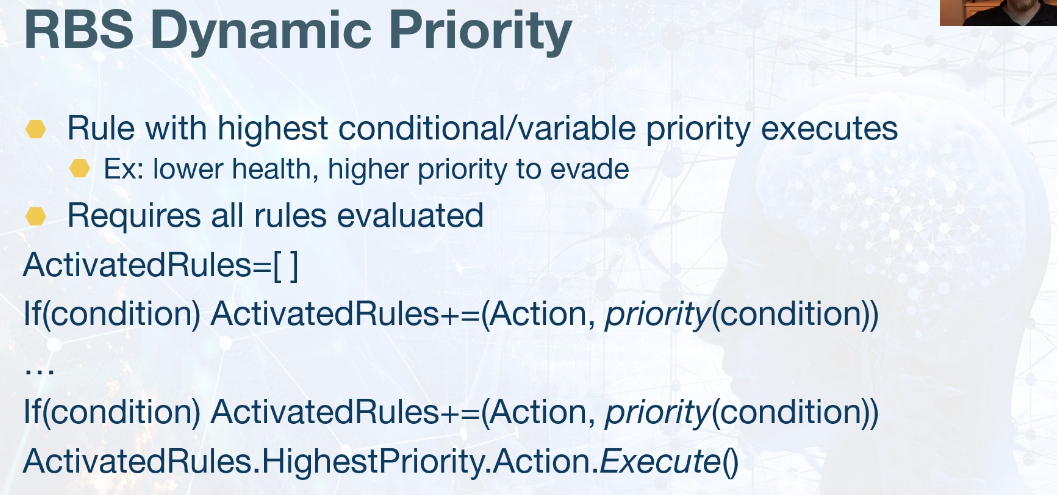

RBS Dynamic Priority

Advanced RBS

• RBSs can get much more advanced
• Expanded features enable robust response to conditions
• These RBSs tend to be more resource intensive

Behavior Trees

• A reactive decision making system that shares some aspects of state machines
• But has a more declarative structure and enforces an understandable structure

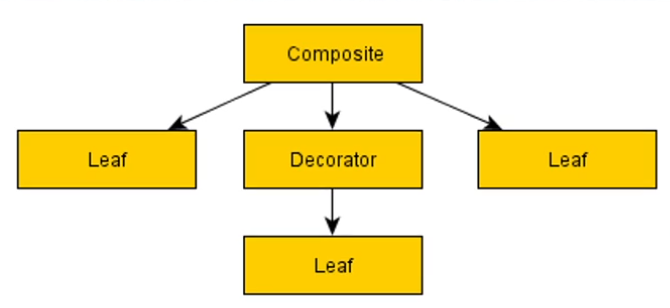

• There are three kinds of nodes
  • Composite
  • Decorator
  • Leaf
• And at any given time, the nodes can be in three possible states
  • Success
  • Failure
  • Running

• Transitions are externalized from states. Instead what you normally think of states in a FSM become behaviors. This allows easy reuse of behaviors as context-specific transitions are decoupled.
• Easy for non-programmers to create (usually with visual tools or high level script)
• Composable, self contained and easy to alter and reuse
• Fails gracefully

Composite Node

• One or more children
• Sequence (AND), Selector (OR), or Random
• Short circuiting of Boolean logic
• Returns success or fail (based on children returns typically)
• Outcome of a lot of children (like leaf nodes) get bubbled up and lead to the outcome of the the composite node

Decorate Node

• One child
• Works by changing or filtering the return of a child
• Examples:
  • Inverter (like NOT)
  • Succeeder (always true, runs child but doesn't care about success/failure)
  • Repeater (like keep shooting)
  • Repeat until fail

Leaf Node

• As part of Behavior Tree API, you often find implementation of these terminal nodes. They are the behaviors.
• Returns success, fail or processing
• For example, Init() is called on first visit, Process() is called until complete afterwards.

One action per tick

• Each node keeps track of current child to execute
• At start of Update(), walk the tree to find our current node. If the BT executed it last frame, then continue, otherwise, reset it.
• Nodes return success, fail or processing

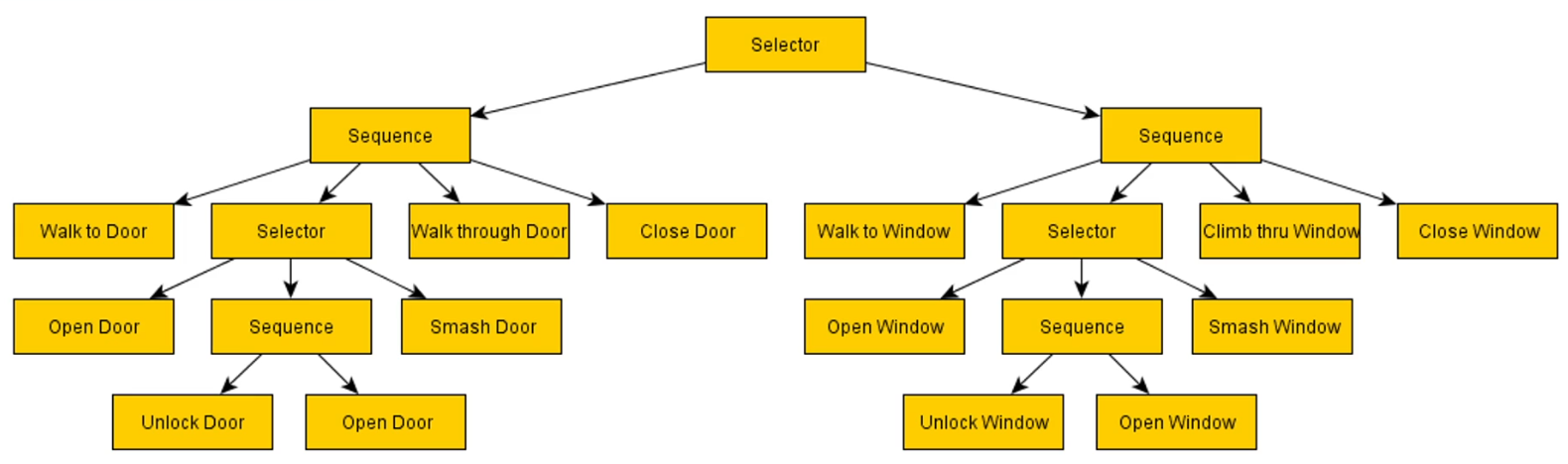

An Example

Non-deterministic nature

• Strict oder == predictable
• Introduce random selector or sequence nodes
• Can also introduce prioritized versions which select or sequence according to world state (can be less predictable but more efficient)

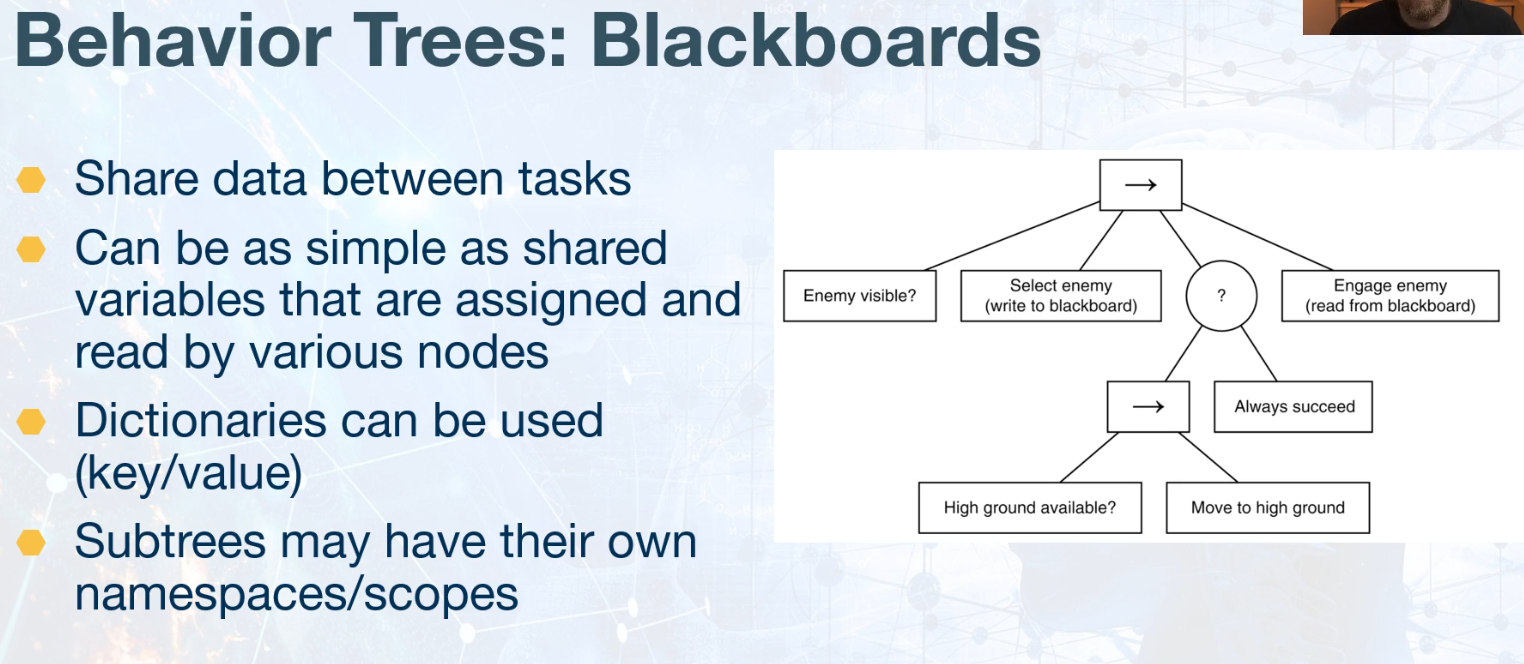

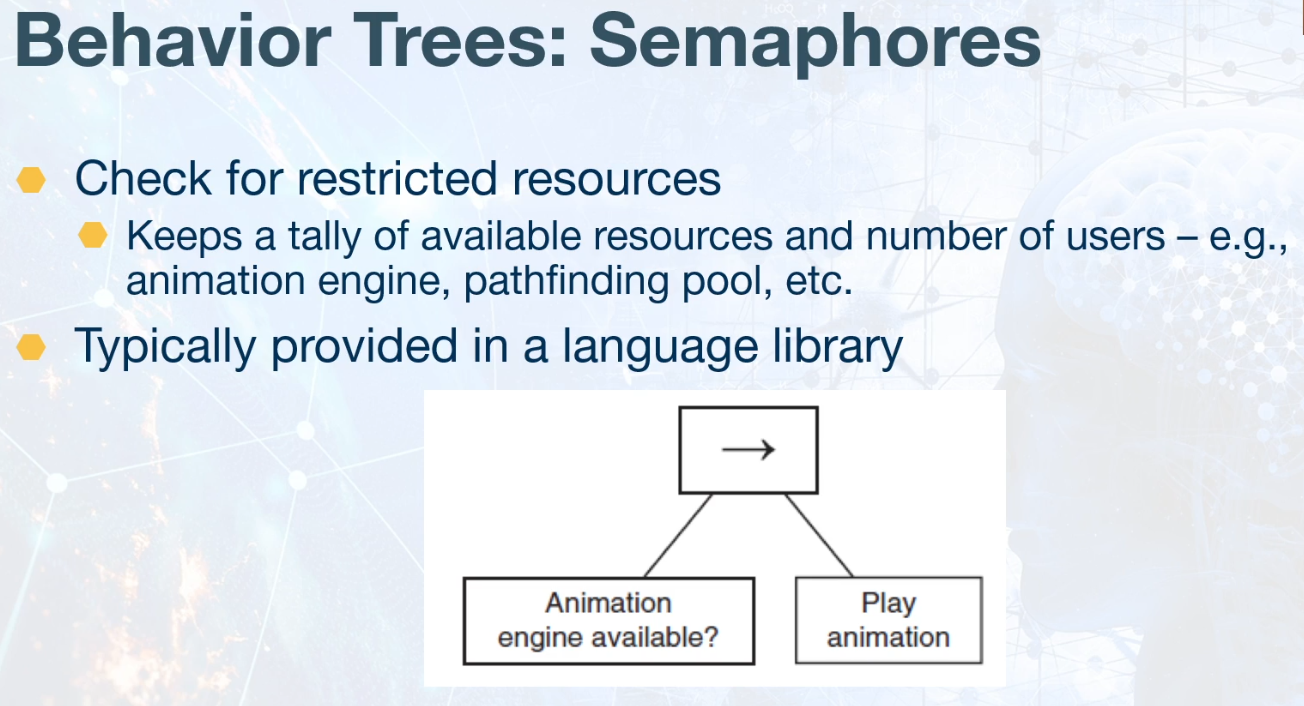

Semaphores & Blackboards
